Cemb DWA3500

Cemb DWA3500

Denna mycket avancerad hjulinställning kan konfigureras efter just dina behov och förutsättningar.

Med sin stora 43″ monitor och motordrive kamerabom som följer bilens höjd på lyften, så blir justeringen en barnlek.

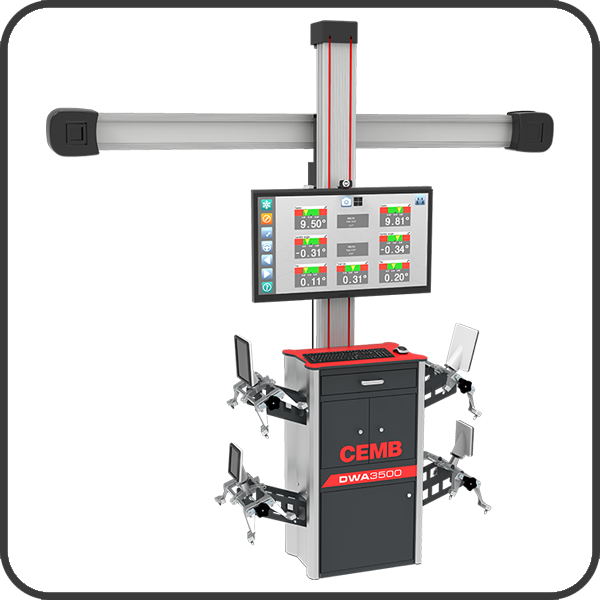

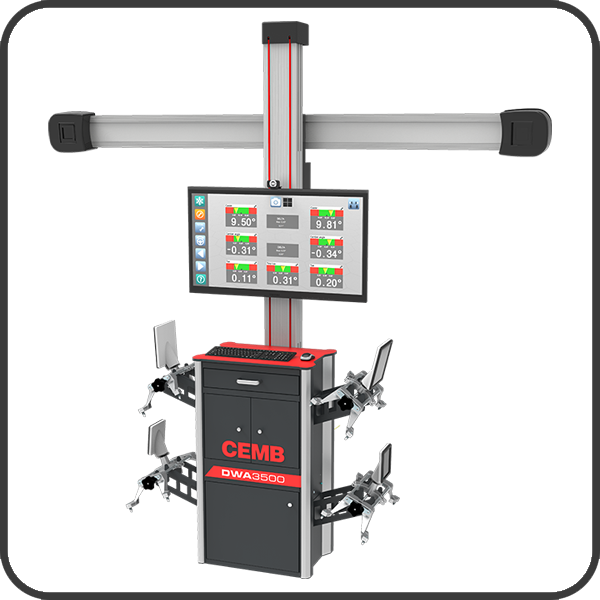

The new 3D-HD technology wheel alignment system with automatic camera beam!

DWA3500 is the new 3D wheel alignment system for cars and light commercial vehicles, with a completely redesigned cabinet with drawers and housings for printer and accessories, an easy accessibility for maintenance and an advanced software.

Motorized and automatic camera beam

The 3D camera support beam is motorized and fully automated. Camera beam height is automatically adjusted to the height of lift.

The camera beam position is studied to optimize the available space.

Advanced software

Features very clear and userfriendly graphics. The software system, entirely developed by CEMB, guides the user through all the alignment operations.

3D technology detects all alignment parameters, included wheel diameters, that identify eventual deflated wheels and dimensions such as track, wheelbase and diagonals to identify damages due to crashes.

Some of the main innovations are: single wheel lifted run-out in case of restricted space or lifts with steps, measurement with 2 targets for long vehicles, caster trail, scrub angle and audit.

Dedicated electronics

The system features an industrial type computer, Windows 10 based, solid state SSD Sata, USB interface, webcam and remote access for automatic updates. No moving parts (DVD/CD) that can cause problems. Direct Shut-Down technology.


The new vehicle model ranking system allows a rapid and clear selection of the different vehicles.

The CEMB database contains more than 55.000 vehicles and is constantly updated.

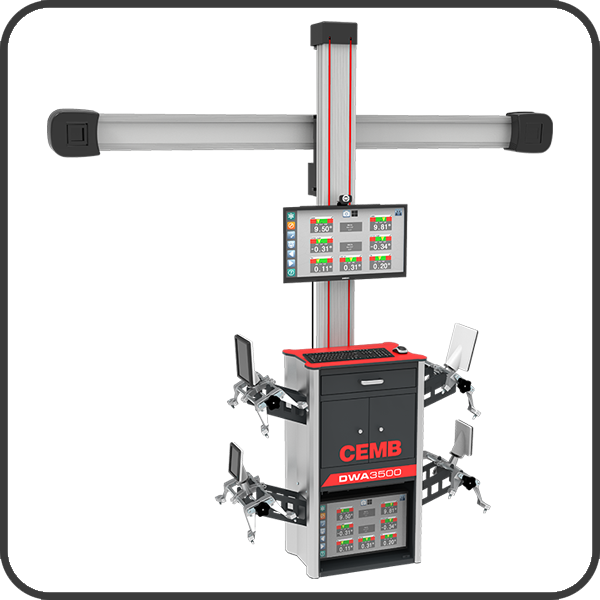

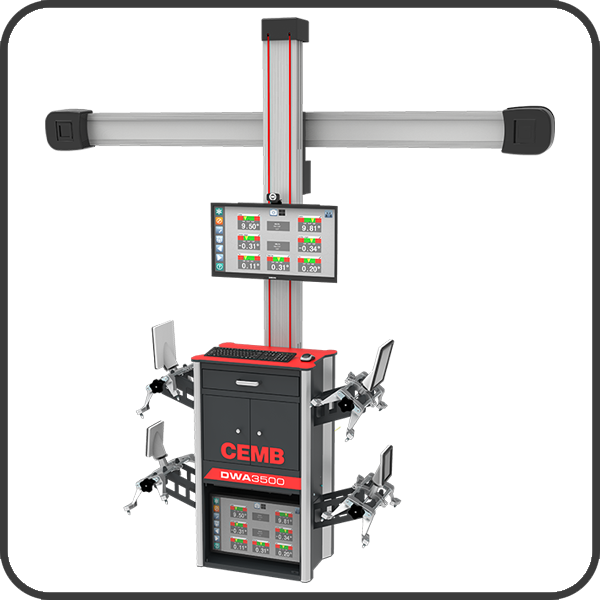

Pit Version (upon request)


Available upon request, the Pit Version is supplied with double monitor to ease the adjustment in pit.

Teknisk info.

Power supply: 230 VAC single-phase 50/60 Hz | 115 VAC single-phase on request
Max power absorbed: 0,7 kW
Max current absorbed: 3 A – 230 V | 6 A – 115 V
