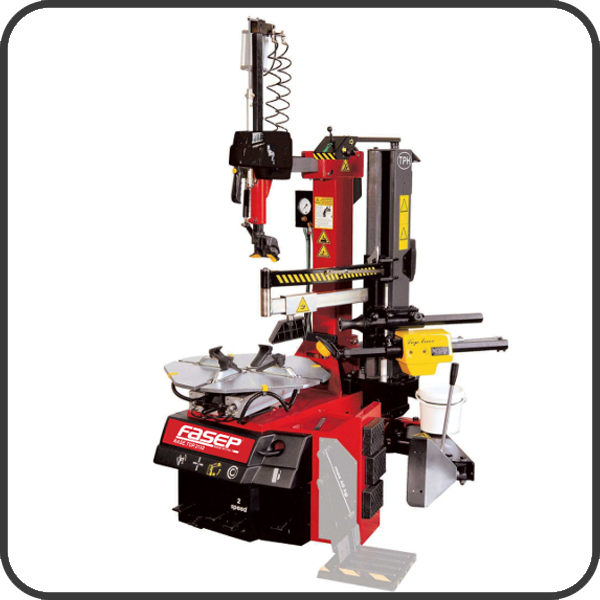

Fasep Rase 2132T LL

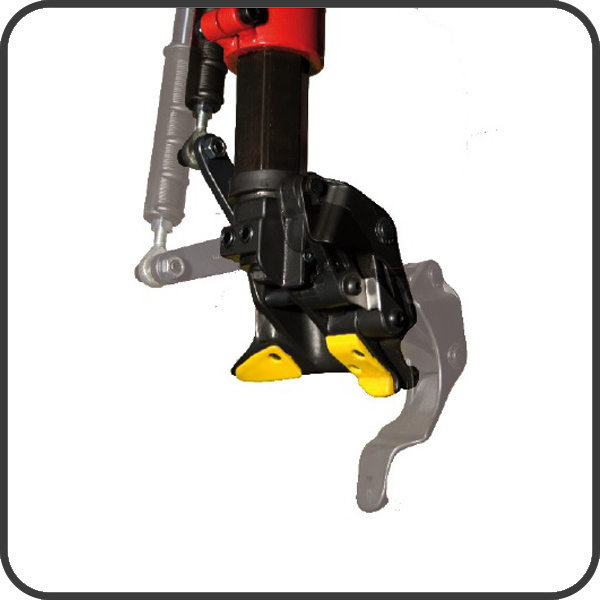

Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.. Self-centering turntable with 4 clamps and 2 cylinders. Steel Plate thickness 15mm. 2 speed Motor. Tilt-back column (pneumatic). Pneumatic control of the mounting head (3-positions). Double acting bead breaker cylinder. Free-moving bead breaker tool with plastic protection. Leverless Mounting head. Tubeless jet inflation on turntable. Pedal inflation with manometer on control panel. Lever for leverless. Removable foot pedals unit. 41 mm hexagonal shaft.

Beskrivning

Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.. Self-centering turntable with 4 clamps and 2 cylinders. Steel Plate thickness 15mm. 2 speed Motor. Tilt-back column (pneumatic). Pneumatic control of the mounting head (3-positions). Double acting bead breaker cylinder. Free-moving bead breaker tool with plastic protection. Leverless Mounting head. Tubeless jet inflation on turntable. Pedal inflation with manometer on control panel. Lever for leverless. Removable foot pedals unit. 41 mm hexagonal shaft.

Teknisk info.

Fälgdiameter 10” – 26”
Fälgdiameter utv. 11” – 24”
Fälgdiameter inv. 14” – 27”
Max hjuldiameter 1100 mm / 46”
Max fälgbredd 405 mm / 16”
Klinchlossarkraft 2900 kgf
Rotationshastighet 6-12 varv
3-Fas motor 0,75 hp
1-Fas motor 0.55 k
Tryckluft 8 – 10 bar
Ljud < 70 ± 3 dB (A)
