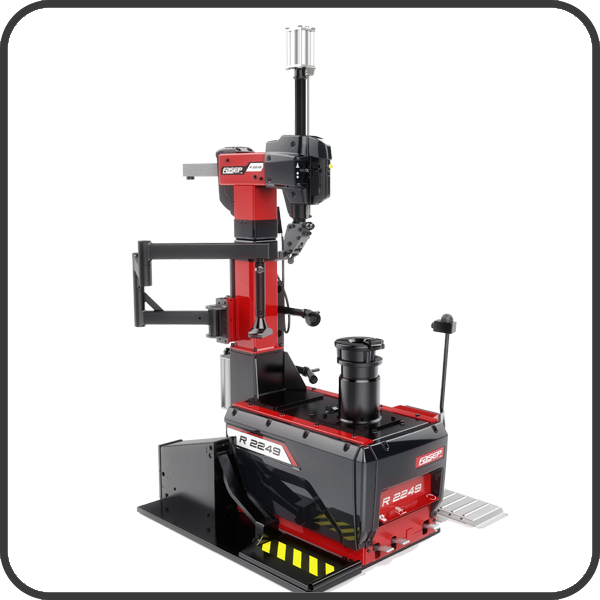

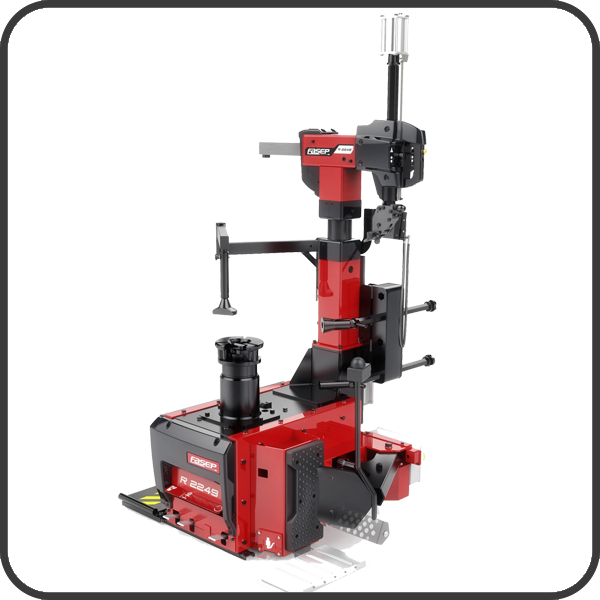

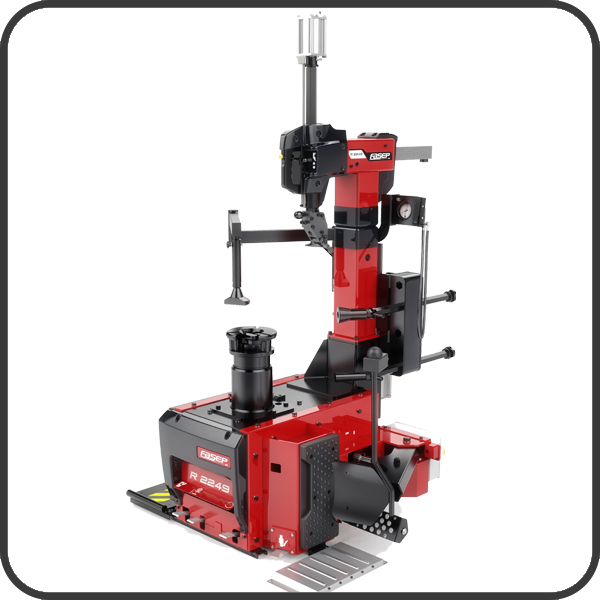

Fasep Rase 2249 SE

Moto-Inverter, Pneumatic Swing, Electric Bead-breaker, Leverless, Lifter
Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels.

Kategori

Beskrivning

Moto-Inverter, Pneumatic Swing, Electric Bead-breaker, Leverless, Lifter
Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.. Center clamp with mechanical locking. Variable-speed Motor (Inverter). Vertical arm with side rotation (pneumatic swing). Pneumatic lock of the mounting head. Pneumatic control of the mounting head. Electric Bead-breaker. Free-moving bead breaker tool with plastic protection. Leverless Mounting head. Pedal inflation with manometer on control panel. Set of plastic protections for alloy rims. Lever for leverless. Removable foot pedals unit. Air lubricator (automatic). Grease container and brush. Inflation pressure limiter (4 bar). Wheel lifter (80 kg). Bead pressing help device. Fixed (width) bead-breaking cushion. Bead breaking force 4350 kg (42.658N). Rim max diam. 12-30″. Max wheel diam 1100 mm (43″). Max wheel width 340 mm (13″). Noise < 70 dB (A).

Teknisk info.

Hjuldiameter 12” – 30”
Max hjuldiameter 1100 mm / 43”
Max fälgbredd 340 mm / 13”
Rotationshastighet 7-14 varv
Motor 1,0 hp
Tryckluft 8 – 10 bar
Ljud < 70 ± 3 dB (A)
