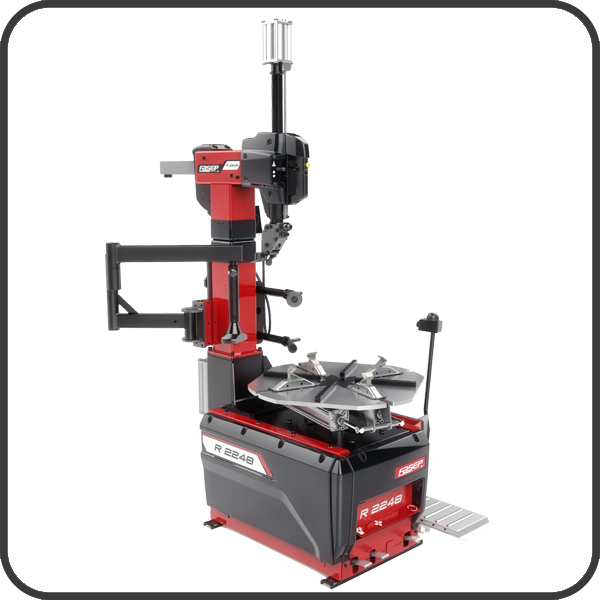

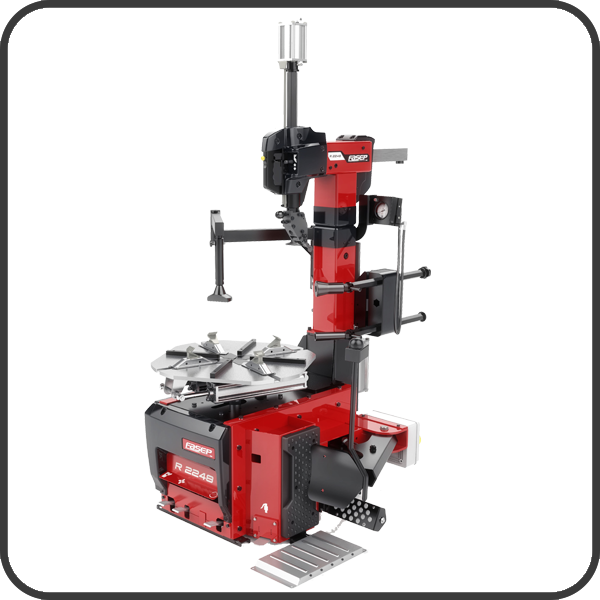

Fasep Rase 2248 SE

Moto-Inverter, Pneumatic Swing, Electric Bead-breaker, Leverless
Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.. Self-centering turntable with 4 clamps and 2 cylinders. Variable-speed Motor (Inverter). Vertical arm with side rotation (pneumatic swing). Pneumatic lock of the mounting head. Pneumatic control of the mounting head. Electric Bead-breaker. Free-moving bead breaker tool with plastic protection. Leverless Mounting head. Pedal inflation with manometer on control panel

Beskrivning

Moto-Inverter, Pneumatic Swing, Electric Bead-breaker, Leverless
Super Automatic Lever-less Tire Changer. Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.. Self-centering turntable with 4 clamps and 2 cylinders. Variable-speed Motor (Inverter). Vertical arm with side rotation (pneumatic swing). Pneumatic lock of the mounting head. Pneumatic control of the mounting head. Electric Bead-breaker. Free-moving bead breaker tool with plastic protection. Leverless Mounting head. Pedal inflation with manometer on control panel

Teknisk info.

Fälgdiameter 11” – 27”
Max hjuldiameter 1100 mm / 43”
Max fälgbredd 340 mm / 13”
Rotationshastighet 7-14 varv
Motor 1,0 hp
Tryckluft 8 – 10 bar
Ljud < 70 ± 3 dB (A)



Ladda ner

Broschyr



Video
