Fasep V788 Cayman

Maskinen har en automatisk inläsning av all hjuldata.

Ett system som använder sig av laser som mäter in all data som krävs för en perfekt balansering utan några ingrepp från användaren. Det enda som krävs av användaren, är att placera hjulet i maskinen.

Beskrivning

The new generation.

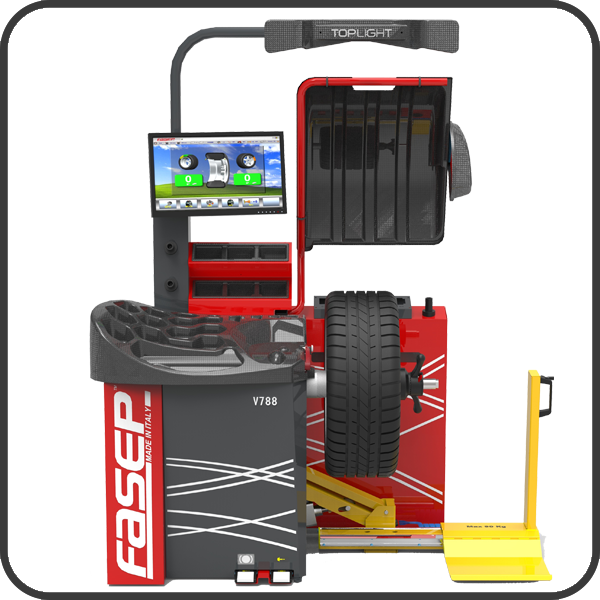

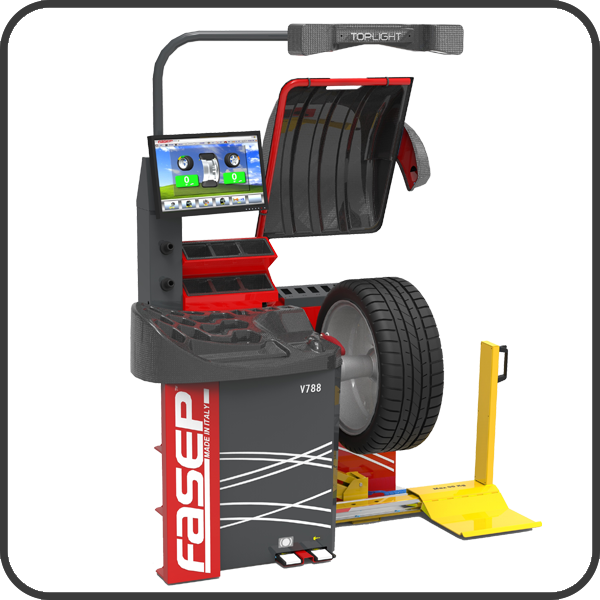

V788 is the wheel balancer that combines all the advantages of the FASEP balancing system in a single machine.
It differs from other wheel balancers thanks to its modern and elegant design, with the addition of TOP LIGHT which makes it inimitable.

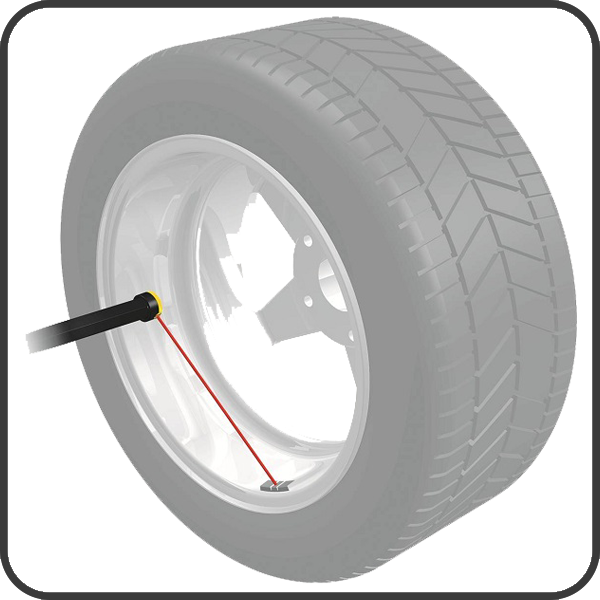

V788 allows the operator to perform rapid balancing with maximum precision: it includes the 3D Touchless system for automatic input of wheel data, combined with the advantages of 3 lasers for applying stick-on and clip-on weights. The TOP LIGHT and LED LIGHT systems are an absolute help in providing a well-lit working area to avoid any inaccuracies. All these advantages are, of course, accompanied by the legendary FASEP 3-piezo measuring system.

The 3D.Wall system allows the measurement of the profile of tire and run-out of tire and rim, as well as the measurement of Side Slip of tire. The system’s software suggests to the operator the best wheel position on the car to compensate the run-out.

Teknisk info.

Elektrisk motor 230V – 50/60 Hz
Max energiförbrukning 0,4 kW
Balanseringshastighet 98 varv/min.
Tid för mätning, 15kg.hjul 4 – 15 s
Mätning, precision 1 g
Fälgbredd Max 16” med stänkskydd
Fälgdiameter 8” – 26” / 200 – 650 mm
Hjuldiameter Max 34” med stänkskydd
Tryckluft  ~ 7 – 10 bar
Max. hjulvikt 90 kg
Vikt 290 kg

Ladda ner

Broschyr
Teamviewer

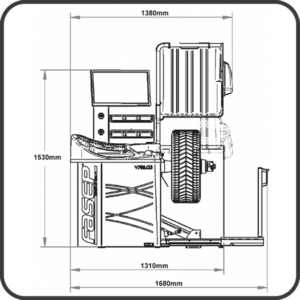

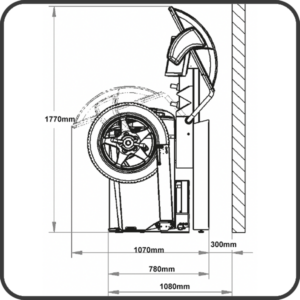

Storlek

Video

>

Varianter

  • E634.001 – V788.G3.PL.UT 230/50-60/1
  • E634.002 – V788.G3.PL.UT.3DW 230/50-60/1
  • E634.003 – V788.G3.PL.UT.LT.3DW 230/50-60/1
  • E634.006 – V788.G3.PL.UT.LTC.3DW 230/50-60/1
