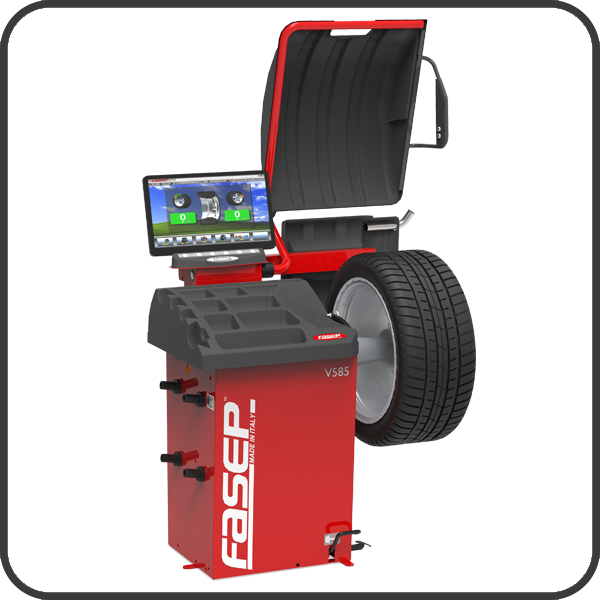

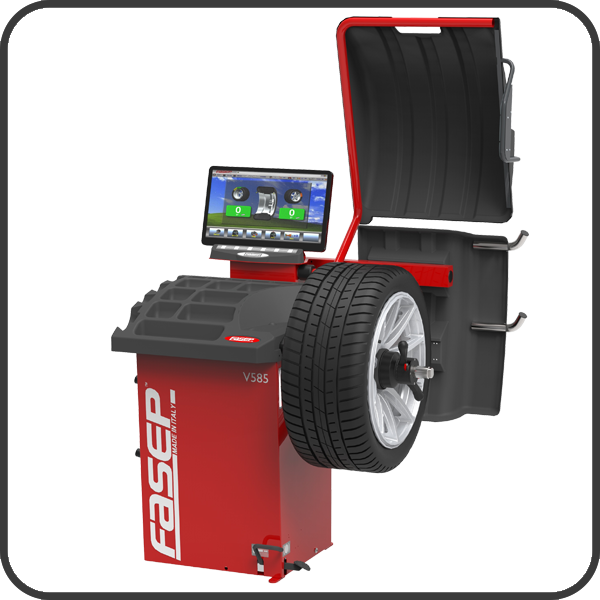

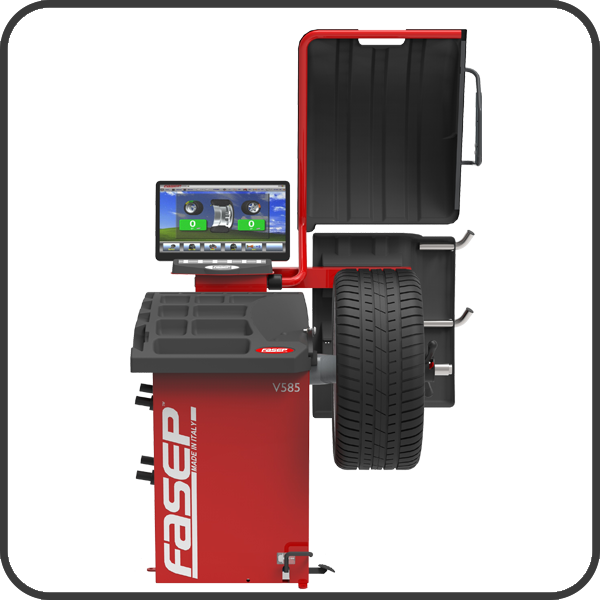

Fasep V585.2 Premium

Direktlänkar

PneuLock, 3D Sonar input, Laser
Computerized automatic wheel balancer. Suitable for Car, Vans, SUVs and Light Trucks wheels.

Beskrivning

PneuLock, 3D Sonar input, Laser
Computerized automatic wheel balancer. Suitable for Car, Vans, SUVs and Light Trucks wheels. 16 bit high-tech electronics G3.EXTREME electronic motor control (Inverter). USB port for program updates and diagnostics. 3Ph Motor with electronic control (inverter). Low Speed (98 RPM). Monitor LCD 19″. WinCE Operating System. FULL level wheel balancing software. IFS Heavy Duty flange system (max 90 kg). TRI.S3NSOR 3 Piezo sensors measuring system. Shaft 40 mm. Shaft height 700 mm. 256 steps position sensor. Easy ALU basement. Pneumatic Lock PLS. EMB Electromagnetic Brake (Lock-in-position). Automatic Start-Stop. Stop-on-position Automatic positioning system APS2 (with run-time correction) (G3 only). 3D Sonar automatic data input (distance + diameter + width). LASER Point system for application of stick-on-weights. Wheel-guard with automatic start of wheel spin. Lower Wheel-guard. LED LIGHT – Led lighting system inside the rim. Self Calibration with Calibration weight. Self Diagnostic. AFC (Automatic Flange Calibration). ALU programs (stick-on weights). ALU-SE / Alu-PAX program for application of stick-on weights.. AUTOSELECT2 function (automatic balancing mode selection DYN-ALU). Tire-Rim Dynamic Unbalance Matching (Optimization). ASF Alu Special Functions (ALU-Mat, ALU-Din). MOTO program. User Setup. SPLIT program (Hidden Weights). FAST program. MARS program for Static minimization. DOUBLE OPERATOR program. STATS program. WOW Weight Saving function. FCC program. Cones 42-98 mm. Max wheel weight 90 kg. Rim max diam. 10-26″. Max wheel diam 864 mm (34″) (with wheel-guard).

Teknisk info.

Elektrisk motor 230V – 50/60 Hz
Max energiförbrukning 0,4 kW
Balanseringshastighet 98 varv/min.
Mätning, precision 1 g
Ljud < 70 dB (A)
Fälgbredd 1.5” – 20” / 40 – 510 mm
Fälgdiameter 8” – 26” / 200 – 650 mm
Tryckluft  ~ 7 – 10 bar
Max. hjulvikt 90 kg
Vikt 150 kg
